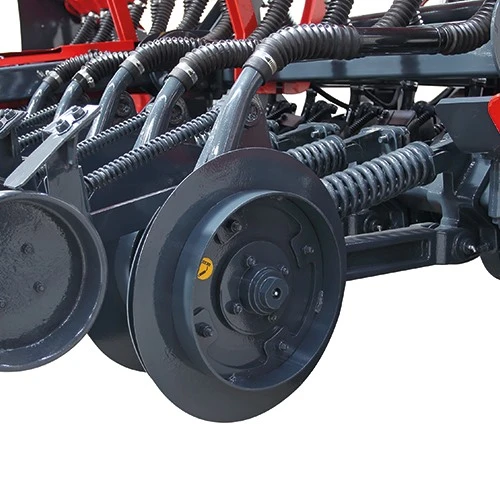

Single Disc Row Opener
Sowing Disc with 7 degree angle compression which can be increased is used in unprocessed,semi processed and processed soils.

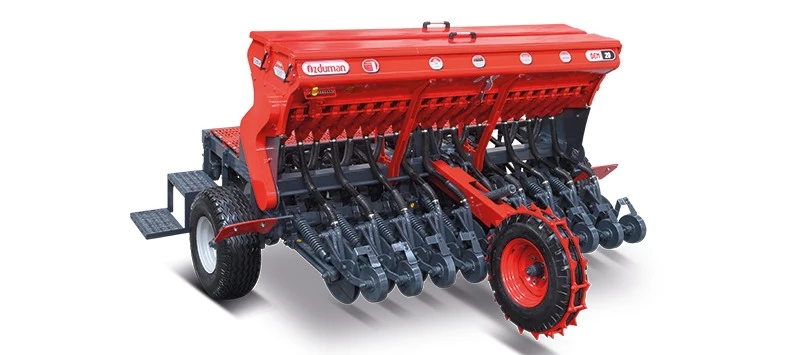

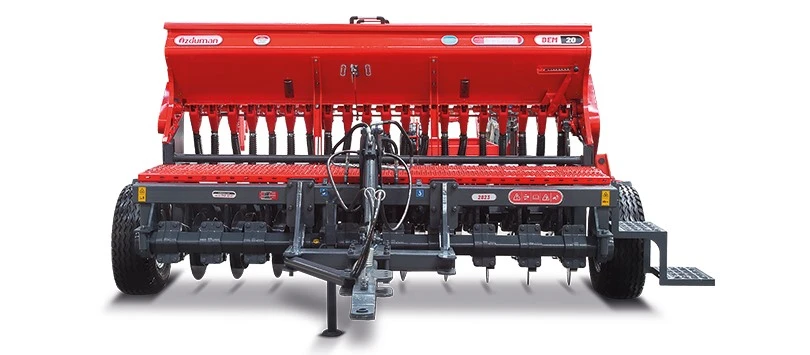

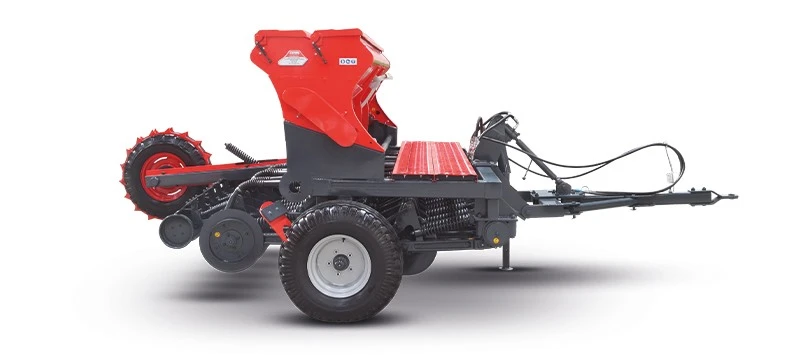

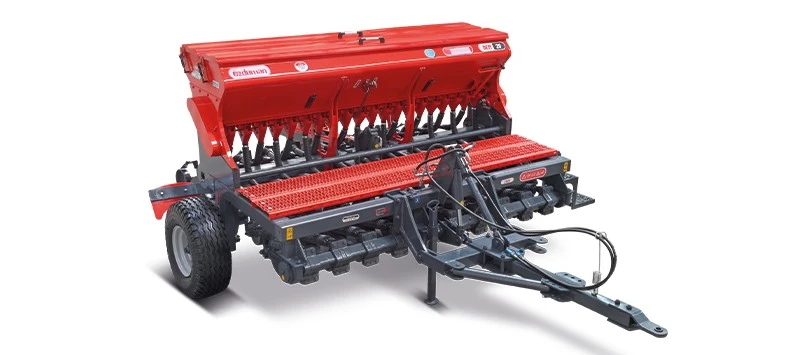

Direct seed drill is a sowing machine that is used in unprocessed, semi processed soil types and transfers the seed, pulses, feed grains and fertilizer to the seed bed opened by the discs continuously,thanks to the helical gears, with the requested quantity and depth with the help of levelling system.
Thanks to its structure, the hopper prevents seed and fertilizer to accumulate and therefore, an efficient seeding is performed by protecting bearing with the dusting system using dry system double bearings on the discs and by hydraulic disc penetration setting, which is performed optionally.
| Seeding Distance | DEM 16 | DEM 18 | DEM 20 | DEM 22 | DEM 24 | ||
| Number of Tines | Pcs | 14 | 16 | 18 | 20 | 22 | 24 |
| Total Length | cm | 14 | 520 | 520 | 520 | 520 | 520 |
| Total Width | cm | 14 | 345 | 354 | 381 | 409 | 438 |
| Total Height | cm | 14 | 197 | 197 | 197 | 197 | 197 |
| Working Width | cm | 14 | 224 | 252 | 280 | 308 | 336 |
| Seed Hopper Volume | lt | 14 | 390 | 435 | 480 | 525 | 570 |
| Fertilizer Hopper Volume | lt | 14 | 280 | 314 | 345 | 380 | 412 |
| Seed Capacity (Wheat) | kg | 14 | 316 | 352 | 389 | 425 | 462 |
| Fertilizer Capacity | kg | 14 | 275 | 307 | 338 | 373 | 404 |
| Dimensions of Sower | mm | 14 | 460 x 6 | 460 x 6 | 460 x 6 | 460 x 6 | 460 x 6 |
| Tire Dimensions | inch | 14 | 11,5/80 - 15,3 | 11,5/80 - 15,3 | 11,5/80 - 15,3 | 11,5/80 - 15,3 | 11,5/80 - 15,3 |
| Weight | kg | 14 | 2720 | 2820 | 2920 | 3020 | 3120 |
| Power Requirement | kW / hp | 14 | 70 - 80 | 80 -90 | 90 - 100 | 100 - 110 | 110 - 120 |
