Basic duty of the rollers is to press on the soil. They are used to pulverize the clods which can not be broken with cultivation tools and to smooth the field surface. Rollers may be used before and after the planting. Before the planting, it presses on the soil by breaking the clods of the cultivated field; and a balance between air holes, water-air ratio of the soil is regulated and a well seed bed is prepared.

After the planting, it helps to increase the contact of the seeds with the soil, to close the water in lower compartments to the seed area and thereby germination.

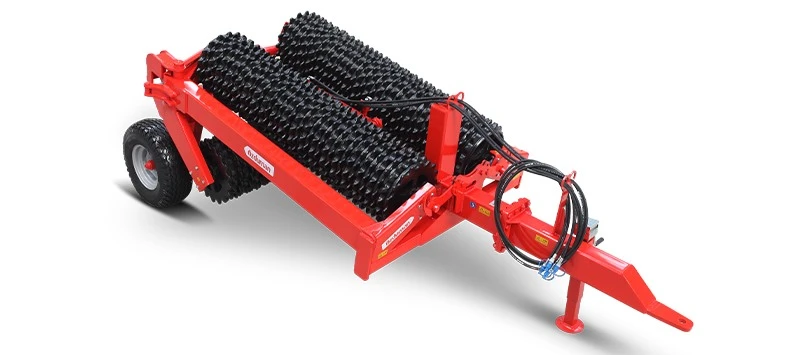

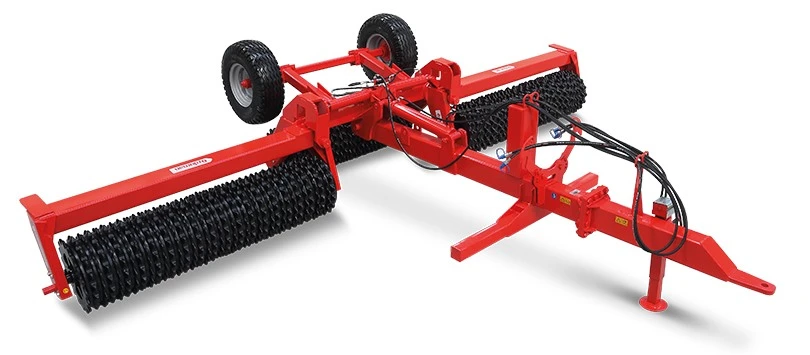

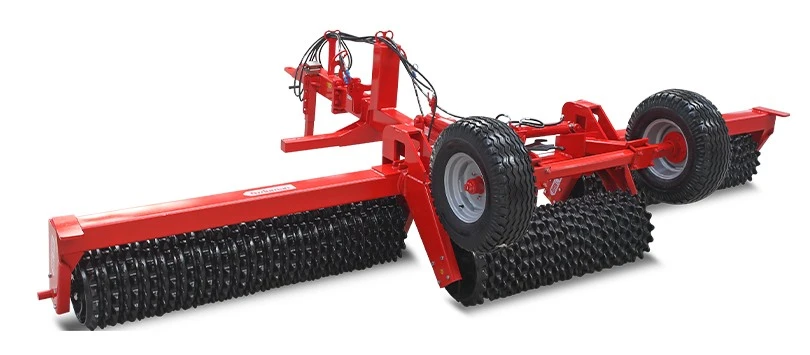

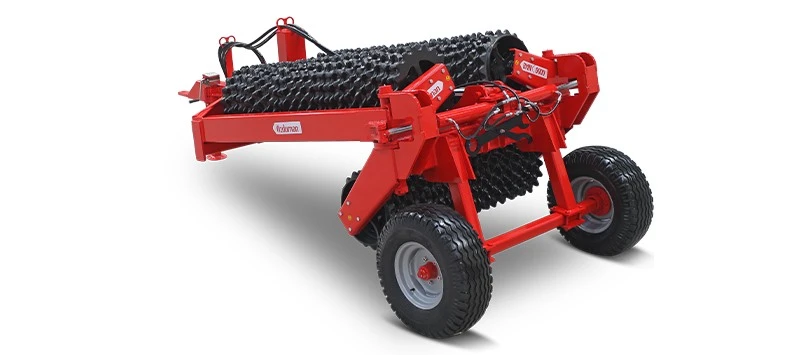

Foldable Roller Bmn
Foldable Roller Bmn
Foldable Roller Bmn
Foldable Roller Bmn
Foldable Roller Bmn
Foldable Roller Bmn
Teknik Özellikler
CodeCasting Çapı (cm)Workşng Width (cm)Total length (cm)Transport Width (cm)Heigth (kg)Power Requirement (hp)
BMN-N 4.540 cm450300250180070-90
BMN-N 640 cm600350250225090-110
BMN-B 4.550 cm450300250230090-110
BMN-B 650 cm6003502503000110-140

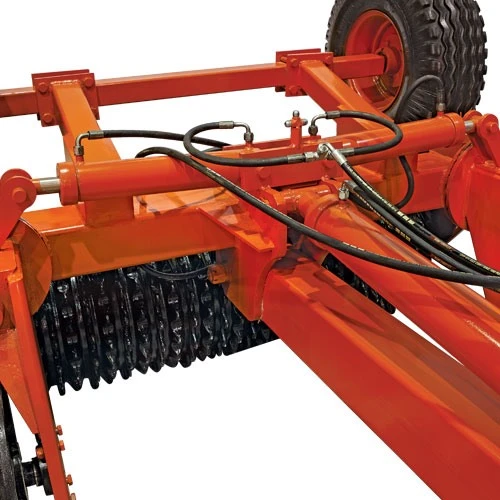

Wing And Balance Lift

Wing And Balance Lift

There are three hydraulic lifts to open the wings and to lift the axle.

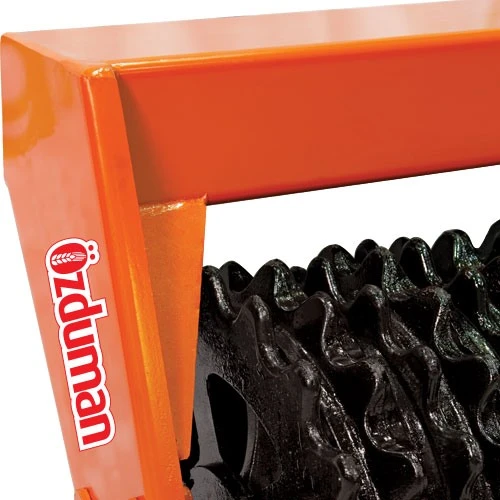

Chassis And Rollers With Different Diameters

Chassis And Rollers With Different Diameters

Fly-wheel diameters as 470 mm and 560 mm upon request and different sized chassis are manufactured.

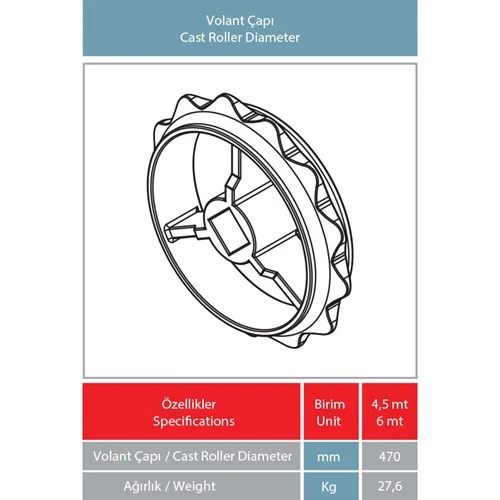

Optional Diameters And Weights

Optional Diameters And Weights

Toothed Cast Roller Diameter


Optional Diameters And Weights

Optional Diameters And Weights

Cast Roller Diameter


Optional Diameters And Weights

Optional Diameters And Weights

Toothed Cast Roller Diameter


Optional Diameters And Weights

Optional Diameters And Weights

Cast Roller Diameter
