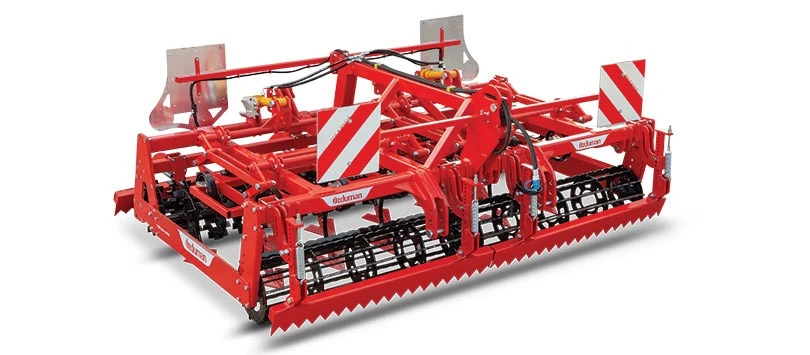

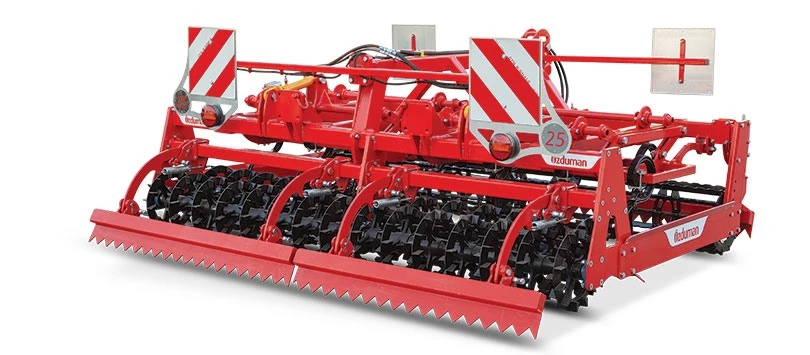

Vibcom is a two or three row seed bed preparation machine allowing to combine numerous agricultural processes in one pass at high speed. It is the right choice for heating the seed bed before spring. Selection of machine configuration allows versatility in use. It can be adjusted to a depth of 17 cm. It can be manufactured in various working widths from 2,5 meters to 8 meters.
For three rowed, reversible point tine, vibrating model (ideal in clay soil), it prefers an intensive and low depth process allowing airing of the soil surface and heating before the seed planting without mixing the deep soil A double row model with a sweep point with a width of 25 cm obtains a fragmented surface layer with an aggressive soil cultivation.
With Vibcom, a rapid seed bed preparation will be performed and a smooth flat surface which is ready for smooth crop formation, will be obtained.
| Vibcom S 2,5 | Vibcom S 3 | Vibcom S 3,5 | Vibcom S 4 | ||
| Working Width | m | 2,5 | 3 | 3,5 | 4 |
| Working Speed | km/h | Eki.14 | Eki.14 | Eki.14 | Eki.14 |
| Power Requirement | kW/hp | 85 / 115 | 95 / 130 | 110 / 145 | 120 / 160 |
| Tine Dimensions Straight Tine | mm | 32 x 12 - Reversible Point , 45 x 12 - Reversible Point | |||
| Tine Dimensions S Tine | mm | 32 x 12 - Reversible Point , 45 x 12 - Reversible Point | |||
| Tine Dimensions S Tine | mm | 32 x 12 - 125 mm Sweep Point , 45 x 12 - 250 mm Sweep Point | |||
| Working Depth | cm | May.15 | May.15 | May.15 | May.15 |
| Straight Tine | Pcs | 25 | 30 | 35 | 40 |
| S Tine - 125 mm | Pcs | 20 | 24 | 28 | 32 |
| S Tine - 250 mm | Pcs | 11 | 13 | 15 | 17 |
| Transport Length | m | 2,7 | 2,7 | 2,7 | 2,7 |
| Transport Width | m | 2,9 | 3,4 | 3,9 | 4,4 |
| Transport Height | m | 1,3 | 1,3 | 1,3 | 1,3 |
| Hydraulic Requirement | 1 DA (Double Acting) | ||||
| Machine Weight | kg | 1700 - 2000 | 2100 - 2500 | 2600-2900 | 3000-3300 |
It provides ideal conditions for germination by tilling the soil ideally in desired depth. Vibrating tine and optional rollers reduce soil surface area by crushing the clods, preserve the soil moisture and prevent deterioration of the granular structure because of loss of mellowness. Working depth is adjusted as desired and product is produced is equal sizes.
To smooth prepared land perfectly after the previous working operations, deepening the loosening level of the soil is an important part of seedling preparation.
A warm and aired soil profile is the most important requirement for the rapid and homogeneous germination of all cultivated crops.
Based on the requirements of the future crop and establishing a precise level throughout the prepared area, it provides a precisely defined depth for seed bed planter.
Ideal structure and proportion of soil particles helps germination of the crop. Soil particles in proper size throughout the land are an integral part of comprehensive seed bed preparation.
Combined subsoil beneath the prepared surface layer renews the soil water regime which is absolutely necessary to start seed growth.
• Vibcom is a machine that prepares a seed bed as required by intensive agriculture systems. It is an ideal machine with maximum efficiency potential.
Tractor wheels compress the soil in moist soil. It is equipped with tractor trace loosening parts to loosen the trace after tractor.
Front leveling sheet which can be adjusted mechanically, brings coarse irregularity to the same level to improve the work efficiency of the tines and rollers fitted to the back side.
It creates a perfect tine level which is 100% ready for sowing even for the smallest seeds such as barley, wheat, poppy, beet.
Deflector plate on the side of the machine prevents the soil from overflowing beyond the machine working width. This prevents the formation of ridges. Connections between each transition are not seen.
It levels the surface and makes the process easier for rollers on the back side. Working height can be easily adjusted by chain adjustment.
Due to high peripheral speed, it performs intense crushing (soil cutting effect). It carries out very good cultivation when used together with casting rollers.
You can easily adjust working depth with hydraulic lift. Due to depth adjustment attachments on the hydraulic lift, you obtain a standard working depth.
There is a mechanical locking system in order not to prevent wings from opening at the road position for foldable machines.
To prepare seed bed in spring, to preserve winter moisture in the soil.
Due to structure of vibrating tine, it loosens the soil in 3 rows at a certain angle, it safely loosens, airs and warms the soil without bringing wet parts preserving winter moisture to surface.
It is especially important for spring plants to be equal in height while growing. Due to individual vibration of each tine, it allows us to work at speeds up to 15 km/h.
It is used for summer and fall preparations and after harvest when the soil needs to be loosened.

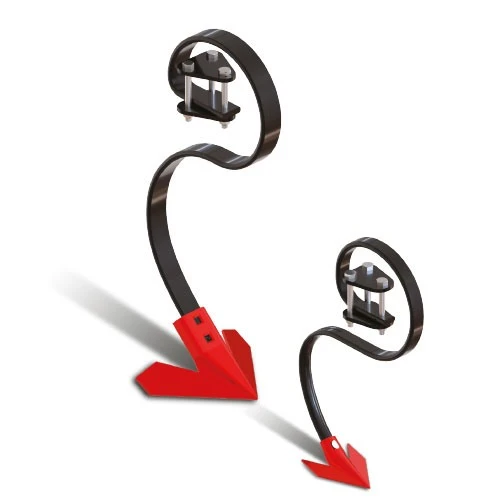

It is equipped with 2 rows of tines with 250 mm sweep point. It allows soil to be cut along the point space due to machine’s tine placement. At the same time, soil is tilled strongly due to the working angle (horizontal and vertical movement) of the tines, thus loosened top layer is formed.
Preserves moisture, especially suitable for spring sowing preparation and sugar beet.

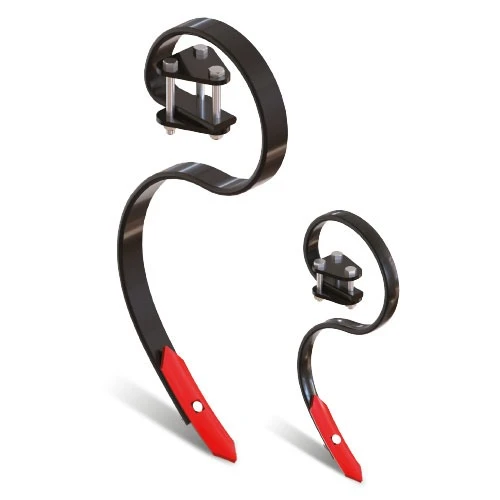

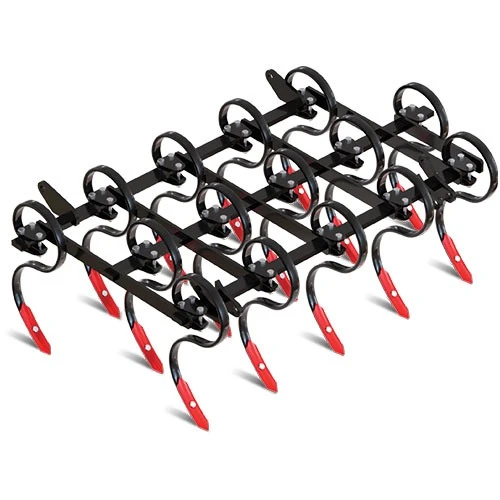

Reinforcing springs placed in 3 rows of S tines ensure quality cultivation in spring Tine angle does not disturb vertical mixture of soil and this keeps moisture in the spring in a quality way. Due to moisture, speed of germination process increases. Required horsepower has been reduced due to the structure of the machine
It can be used on both front and back sides. Suitable for humid conditions. It crushes clods well.
It can be used on both front and back sides. Not suitable for humid conditions. It crushes clods well.

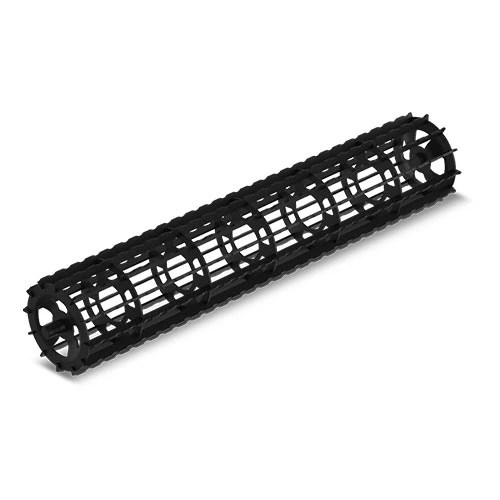

It can only be used on back side. It works perfectly in easy, moderate and hard conditions. It compresses and crushes clods well.
It can only be used on back side. It works perfectly in easy, moderate and hard conditions. It compresses and crushes clods well.
It can be used on both front and back sides. It works perfectly in moderate and hard conditions. It compresses and crushes clods well. Not suitable for extremely hard and alluvial soils.
It is used for improving the work efficiency of the rollers fitted to the back side and bringing coarse irregularity to the same level. Suitable for humid conditions. It crushes clods well.
