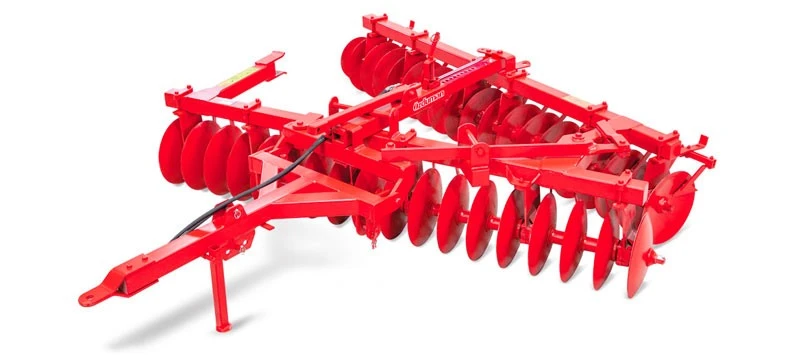

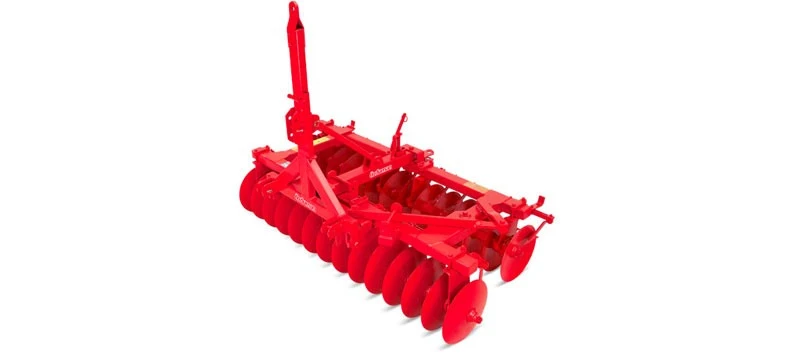

V type trailed and mounted offset disc harrows are a kind of soil cultivation machine which is used to prepare seed bed by breaking the clods after the pulley and mixing the soil.
Operations such as dissecting the plant residues and weeds and breaking the duff layer may be performed with V type towed and loop offset disc harrows. The most significant superiority from secondary soil cultivation tools is being usable within wide humidity limits of the soil.
| Specifications | Unit | AÇD 20 | AÇD 24 | AÇD 28 | AÇD 32 | AÇD 36 | AÇD 40 |
| Disc Number | Pcs | 20 | 24 | 28 | 32 | 36 | 40 |
| Disc Diameter | Mm | 460 x 3,5 | |||||
| Dist. Between Disc | Cm | 18 | |||||
| No.Of Beds On Crank | Pcs | 8 | 12 | ||||
| Working Width (A) | Cm | 180 | 216 | 252 | 288 | 324 | 360 |
| Total Width (B) | Cm | 223 | 258 | 293 | 328 | 363 | 398 |
| Total Lenght (C) | Cm | 147 | |||||
| Total Height (D) | Cm | 205 | |||||
| Frame Size | Mm | 100 x 80 x 5 | 100 x 100 x 6 | ||||
| Weight 460 mm Disc | Kg | 610 | 660 | 710 | 765-935 | 985 | 1035 |
| Weight 510 mm Disc | Kg | 870 | 1050 | 1100 | 820-985 | 1040 | 1095 |
| Min. Hp | Hp | 50-55 | 55-60 | 60-70 | 70-80 | 80-90 | 90-100 |
There is an additional guide disc to close the furrow hole and prevents hole formation.
The pulley system which is manufactured from steel pipe and platina and so breakage was prevented.
На каждом диске имеется скребковая система, очищающая диск от налипшей травы и комков.
It enables to adjust the battery curve easily.
A spring pin assembly which enables the battery curve to be fixed during the operation.
It has a feature to be trailer by removing a pin.
Double ball bearing, double dust seals, ring manufactured from forged steel and long lasting bearing with double grease nipple.
Discs may be manufactured with sizes of 460 and 510 mm and plane and notched.

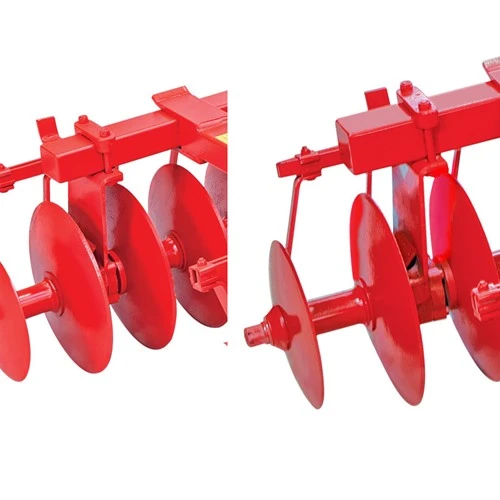

There are light and heavy chassis options on our machine upon request.
The curve angles may be adjusted with the hydraulic lift without stepping out the tractor.
