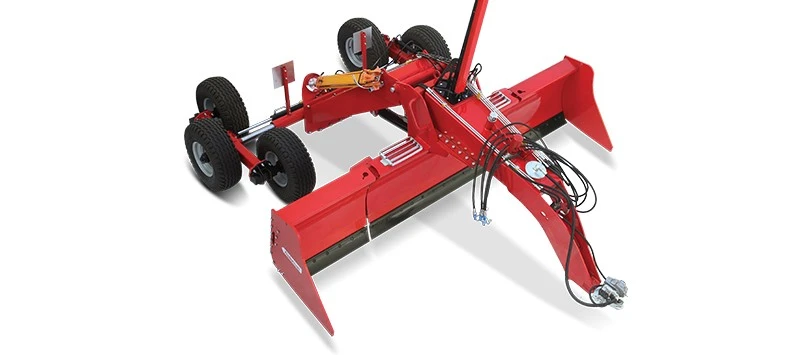

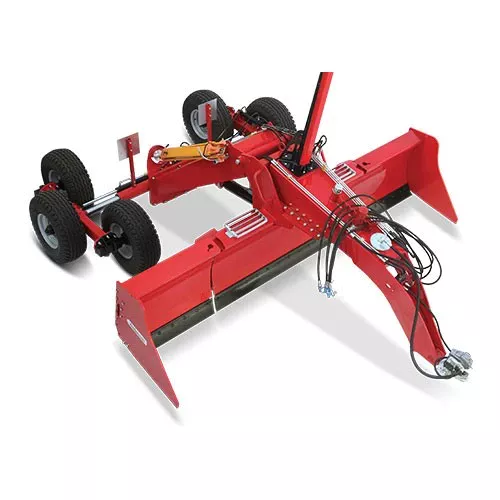

Thanks to the blade structure of the machine, more soil moves, requires less tractor power, it cuts and loses the soil very well, and it rounds the soil perfectly at the time of cutting.
| OZDLP 3 | OZDLP 3,5 | OZDLP 4 | OZDLP 4,5 | OZDLP 5,5 | OZDLP 6 | ||
| Blade Width | Cm | 300 | 350 | 400 | 450 | 550 | 600 |
| Length - Road Position | Cm | 525 | 525 | 525 | 665 | 605 | 645 |
| Width - Road Position | Cm | 244,5 | 244,5 | 244,5 | 244,5 | 244,5 | 244,5 |
| Wheel Operation Width | Cm | 296 | 346 | 346 | 346 | 449 | 541 |
| Hydraulic Control System | Cm | Independent | Independent | Independent | Independent | Independent | Independent |
| Blade Tilt Adjustment | Lt | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Min. Engine Power | Hp | 75 | 90 | 100 | 110 | 125 | 150 |

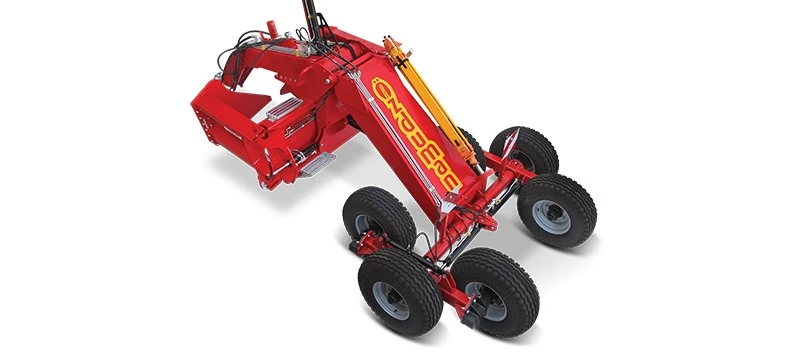

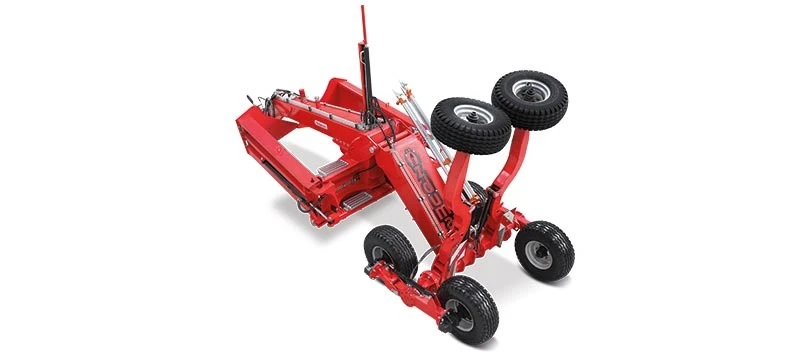

In transportation position, wings are folded angularly with the help of a hydraulic lift in order to prevent them from being damaged by obstacles and bumps on the road.
Due to blade structure of the machine, more soil moves, less tractor power is required, soil is cut and lost very well, soil is rolled perfectly while cutting.
If there is a problem in parallelism of right and left ends of the blade to the ground, you can adjust the parallelism to the ground by lengthening and shortening the hydraulic lift without leaving the tractor.

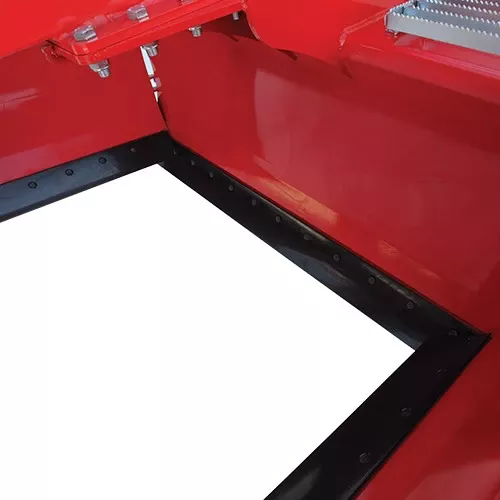

Due to its special structure and chemical properties, a replaceable imported blade with increased resistance to breakage is used.
Due to special side operation wheels, it enables more balanced and stable operation of the machine during leveling.

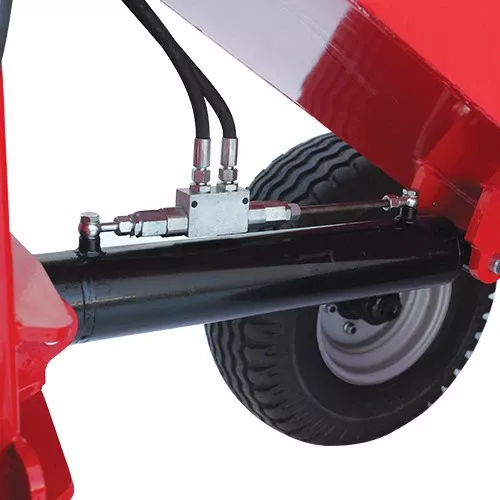

Hydraulic components are very important for proper operation of the machine. Leveling process is standardized by transmitting machine's lifting and lowering commands to the machine.
Wheels take place easily with the stern shaft bearing with the help of hydraulic lift in order for the machine to be brought into road and work positions easily. In work position, wheels behind the blades ensure balanced operation of the machine.
A step and handle are positioned so that receiver can be easily attached to mast piston on the machine and removed.
Dust sheets on the machine that prevent soil from overflowing are removable. It is ensured that dust sheet bending because of the reasons such as sticking and hitting while the machine is operating can be repaired easily.
It provides a safe transportation opportunity by making the machine visible.
It is made of aluminum material with three legs to which transmitter can be connected and whose height can be adjusted easily and it is light and easy to use. It enables laser transmitter to send signals to the receiver on the machine and it ensures safe installation and operation.

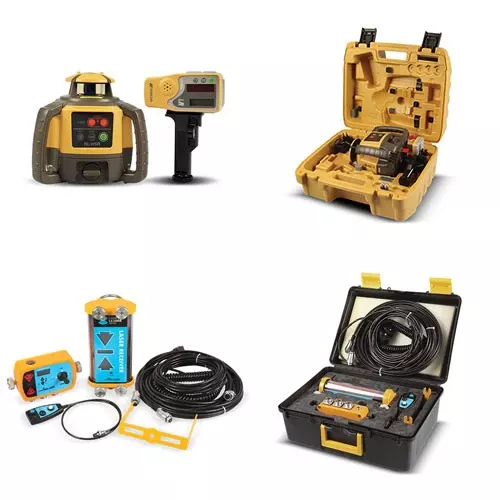

- Topcon transmitter
- Receiver
- Control box, control with Joystick
- Solenoid valve cables are laser system's standard content.
