Italian type blasting, it is a suspended machine processing the earth without bringing up the infertile soil found in the lower layer of earth and by braking the lower layer of the plow without leaving any untreated soil between the legs while processing the soil considering the shape / structure of the legs. With Italian type blasting the soil can be processed deeply. Through this, it allows soil to air out, and by preventing rain water to stay on the surface, it ensures that the water works its way down to the base and protects the moisture of soil, allows hard layer to break and lets the roots of the plants go down to the base of the soil in an easier way. In addition its roller which is connected to the chassis simultaneously presses the soil that is lifted up by the discs thusly minimizing the loss of moisture after processing.

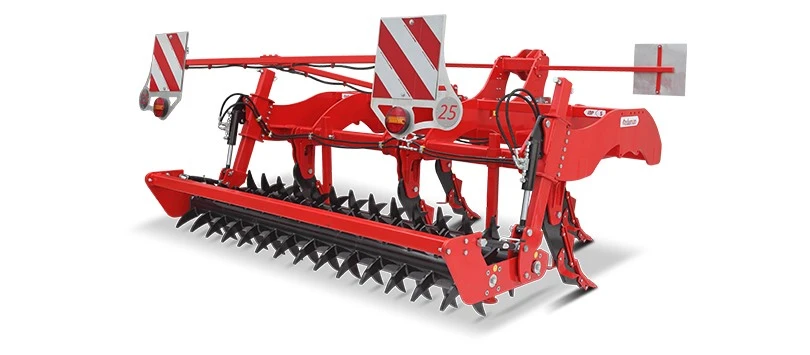

Italian Type Subsoiler Ibp
Italian Type Subsoiler Ibp
Italian Type Subsoiler Ibp
Italian Type Subsoiler Ibp
Italian Type Subsoiler Ibp
Italian Type Subsoiler Ibp
Italian Type Subsoiler Ibp
Italian Type Subsoiler Ibp
Italian Type Subsoiler Ibp
Italian Type Subsoiler Ibp
Teknik Özellikler



Specifications Unit IBP 5 IBP 7 IBP 9
Number of Tine Pcs 5 7 9
Distance Between Tines cm 55
Working Width (A) cm 200 250 250 300 300 350
Total Width (B) cm 244 294 294 344 344 394
Total Length (C) cm 332
Total Height (D) cm 178
Weight kg 1430 1700 200 2400 2570 3080
Min. Hp hp 160-190 190-220 220-250
Video
Formed Tines

Formed Tines

They are manufactured from a special steel and cemented completely including the edge iron and do not leave any raw area during cultivation.


Safety Bolt

Safety Bolt

There is a safety bolt for the stand not to be damaged from the stones and forces exposed under the soil as stand depth is much.


Blade

Blade

Blades connected onto the stand edges are manufactured specifically and they have a self-sharpening feature.

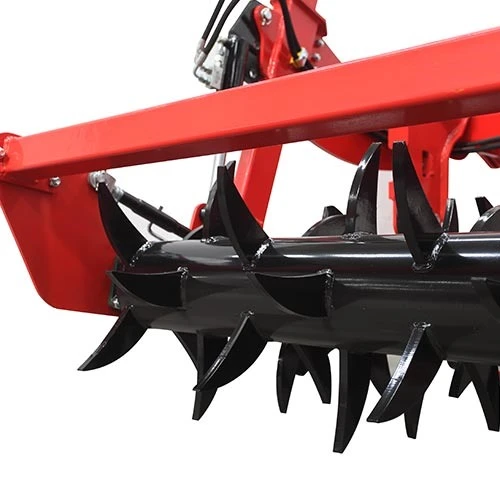

Double Row Jagged Roller

Double Row Jagged Roller

Jagged roller is made for the breaking of clods and smoothing the soil. The roller increases the water holding capacity of the soil due to its jags.


Depth Adjusting Wheel

Depth Adjusting Wheel

It is possible to protect the grazing of the machine by iron wheels as well as to adjust the work depth.

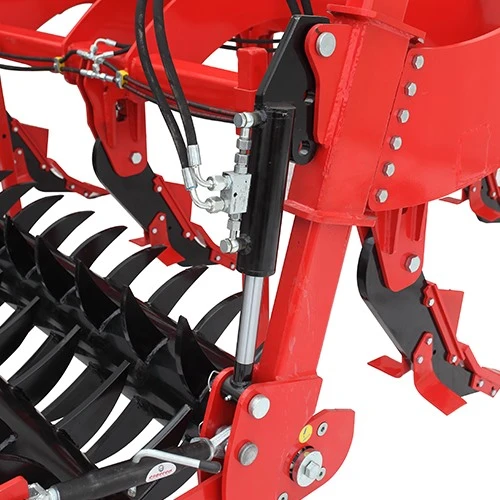

Hydraulic Adjusted Roller

Hydraulic Adjusted Roller

By the means of hydraulic fibers, it is possible to make/set the different depth adjustment.


Traffic Kit

Traffic Kit

Traffic kit creates higher visibility with better security.
