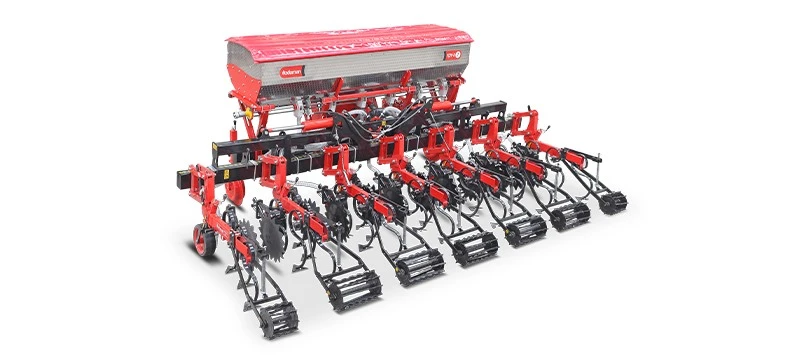

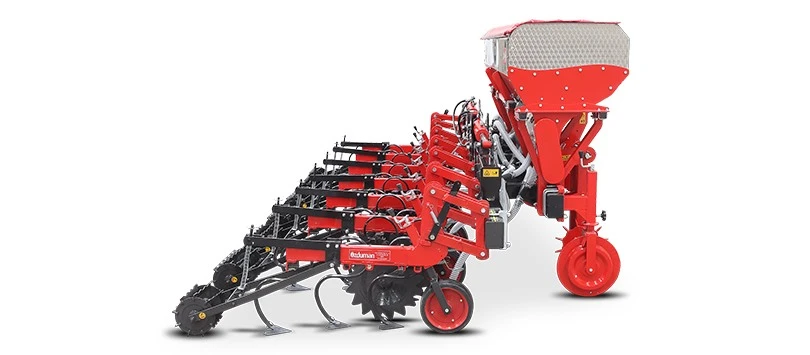

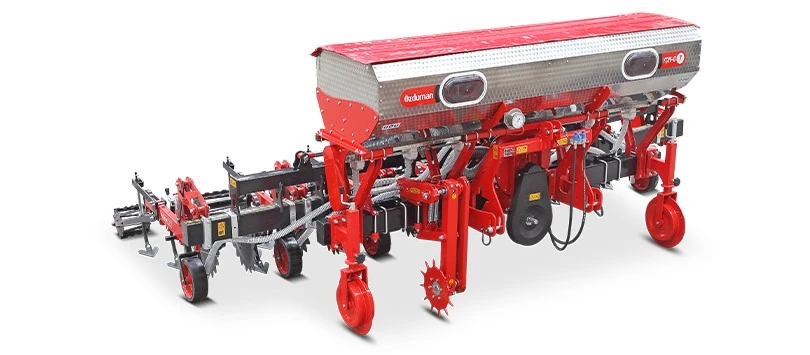

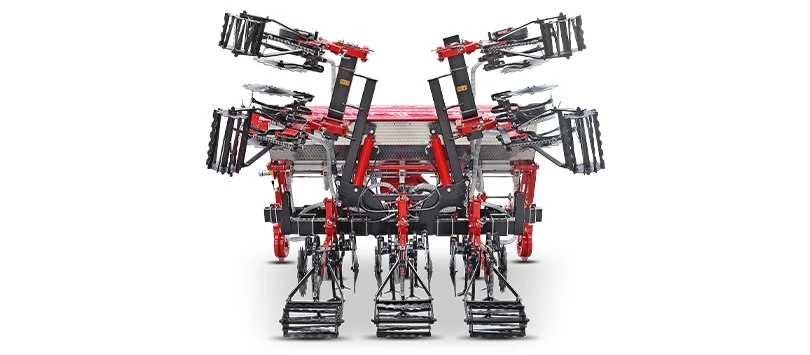

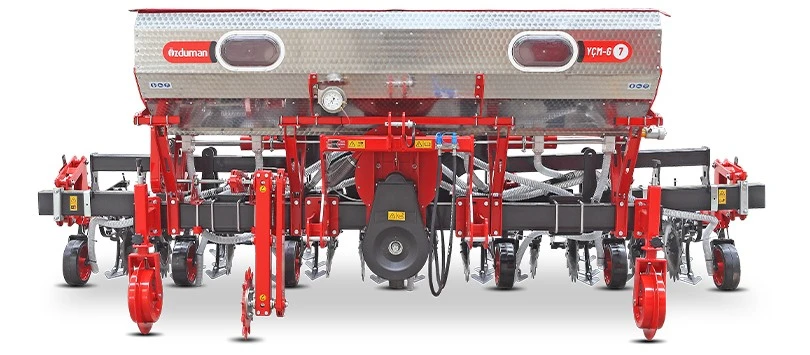

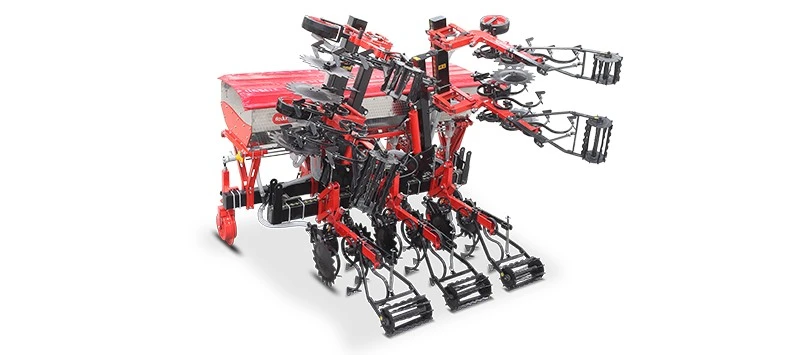

Interrow hoeing machine with springs is used for land upheavaling and destroying weeds between the plants (beets, beans, sunflower, corn, soy bean, tomato, sweet melan, water melon etc) seeded on the row and provides better fertilizer effecting on soil. Thanks to these processes, plant growing is accelerated.
Row spacing of the hoing machine can be adjusted. Crop protection discs (star discs) protect the little crops to be covered by soil during hoeing. Thanks to its tine construction, it can also operate on rocky soils easily.
Soil depth adjustment of each unit can be arranged according to the size of crops to be hoed. It can maintain the operation depth on rough terrains thank to the units moving independent from each other and guide discs, which protects the machine from losing movement direction and swerving, allow hoeing without damaging the crops on slopped lands.
| Specifications | Unit | YÇM 5 | YÇM-G 5 | YÇM 6 | YÇM-G 6 | YÇM 7 | YÇM-G 7 | YÇM 9 | YÇM-G 9 |
| Number of Units | Pcs | 5 | 5 | 6 | 6 | 7 | 7 | 9 | 9 |
| Number of Tines | Pcs | 21 | 21 | 16 | 16 | 31 | 31 | 41 | 41 |
| (A) Total Lenght | Cm | 300 | 330 | 300 | 330 | 450 | 480 | 600 | 630 |
| (B) Total Width | Cm | 186 | 186 | 186 | 186 | 186 | 186 | 186 | 186 |
| (C) Total Height | Cm | 123 | 170 | 123 | 170 | 123 | 170 | 123 | 170 |
| Distance Between Rows | Cm | 45-90 | 45-90 | 45-90 | 45-90 | 45-90 | 45-90 | 45-90 | 45-90 |
| Weight | Kg | 650 | 800 | 700 | 900 | 950 | 1200 | 1250 | 1600 |
| Fertilizer Case Volume | - | 450 | - | 450 | - | 340 x 2 | - | 500 x 2 | |
| Fertilizer Capacity | Lt | - | 440 | - | 440 | - | 335 x 2 | - | 490 x 2 |
| Min. HP | Kg | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
It protects the machine from shaking and maintains the machine stable during hoeing and provides a proper hoing process.

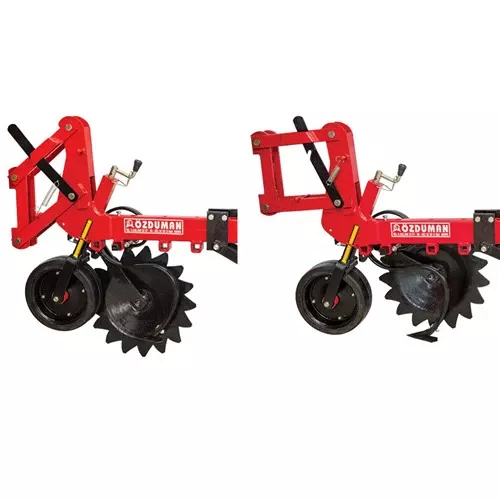

Locks the half units on field turns and unfinished places.

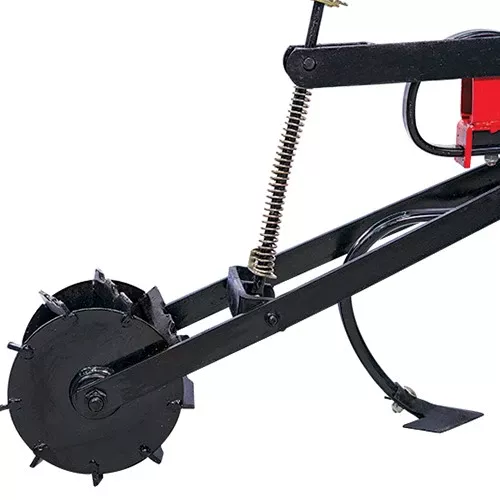

Straightens the soil and crashes the clad coming out of vibrating tines. / The tines are imported and ventilate the soil without making a base underground by making vibrations during hoeing.

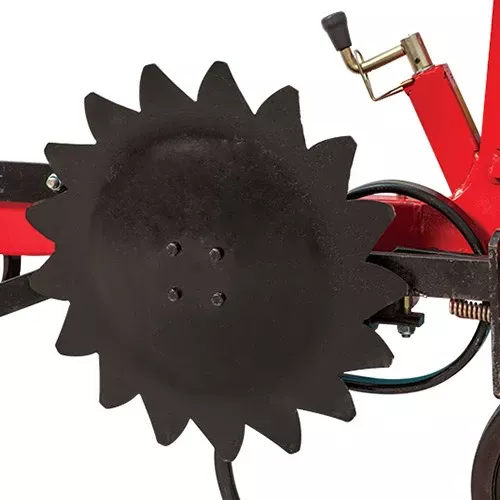

Protects the seed to be covered by soil during seedling condition. On the next hoeing, the star disc should be suspended in order to prevent the crop.
Protects the seed to be covered by soil during seedling condition. On the next hoeing, the protection sheet should be suspended in order to prevent the crop.
Fertilizer hoppers are in V shape. Thus, seeds are transferred to the distributers from hoppers. There is also a sieve preventing foreign materials passing to the ditributers.
There are fertilizer distribution sheaves which are easy to clean and distribute fertilizer uninterruptedly. GRADATION LEVER: Thanks to the gradation lever system on every hopper, the fertilizer can be arranged in requested quantity.

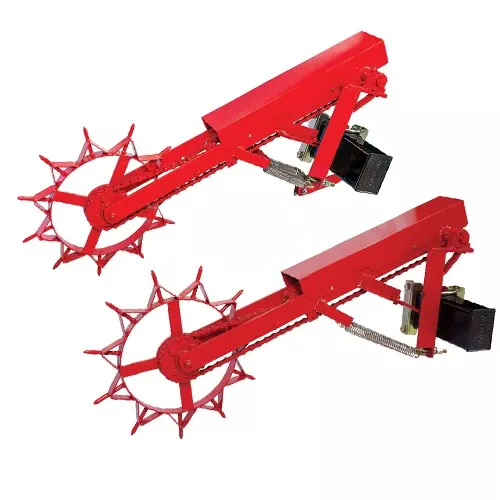

Discharges the fertilizer from hoppers during hoeing. If machine is requested not to drop fertilizer, then the fertilizer wheel can be canceled.
It is used in middlebreaking of corps like corn and sunflower.
