FAST, ECONOMIC, STRONG !

Compact disc harrows are suitable for shallow and heavily mixed tillage operations. It provides easy pulling function, high-speed operation and impressive soil

tillage as well as low fuel consumption. It is manufactured as mounted, semi mounted and trailed from 2 to 6 meters working width.

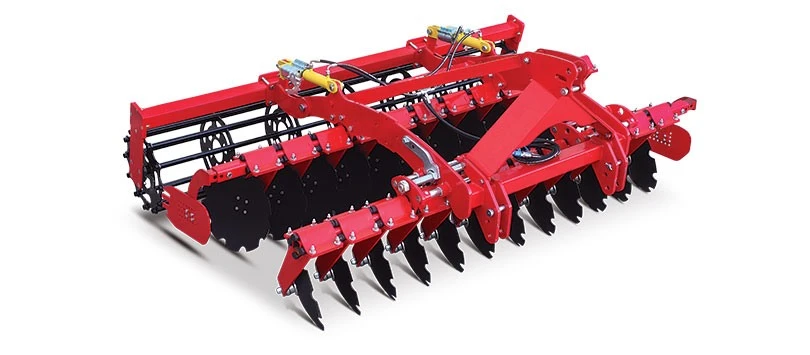

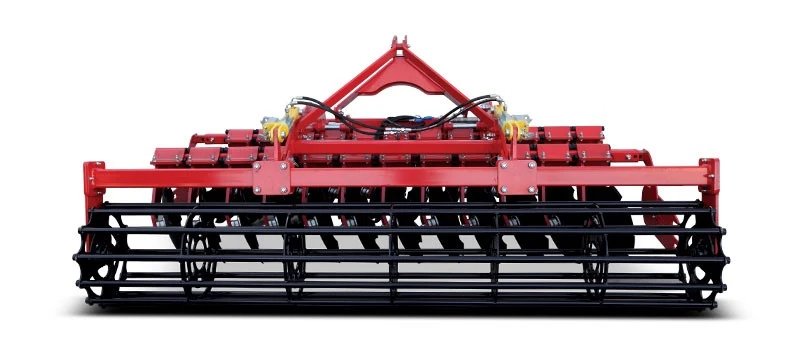

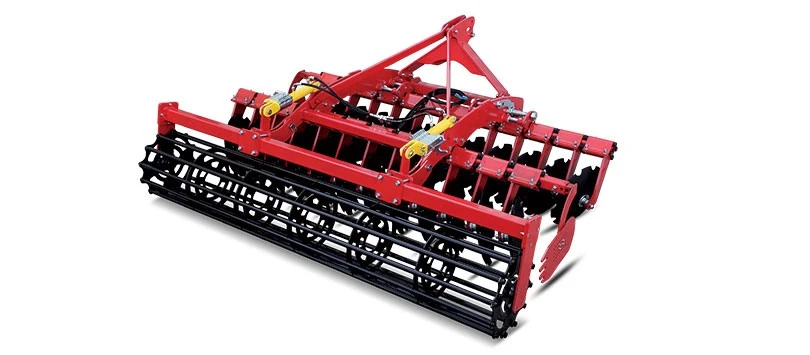

Compact Disc Harrow Gaius
Compact Disc Harrow Gaius
Compact Disc Harrow Gaius
Compact Disc Harrow Gaius
Compact Disc Harrow Gaius
Teknik Özellikler
Gaius 2Gaius 2,5Gaius 3Gaius 3,5Gaius 4
Working Widthm22,533,54
Working Speedkm/hAra.18Ara.18Ara.18Ara.18Ara.18
Power RequirementkW / hp44/6055/7566/9077/10591/125
Disc Diameter / Thicknesscm51 x 4 - 56 x 551 x 4 - 56 x 551 x 4 - 56 x 551 x 4 - 56 x 551 x 4 - 56 x 5
Disc Spacing cm2525252525
Working Depthcm5 - 14 / 5 - 165 - 14 / 5 - 165 - 14 / 5 - 165 - 14 / 5 - 165 - 14 / 5 - 16
Number Of Discpcs2 x 82 x 102 x 122 x 142 x 16
Transport Lengthm2,52,52,52,52,5
Transport Width m2,272,773,273,774,27
Transport Height m1,41,41,41,41,4
Tire Size-----
Hydraulic Requirement1 DA (Double Acting)
Width Between Batteriescm9090909090
Disc BearingsMaintenance-Free
Weight Without Rollerkg760940113013201500
String Cogged Rollerkg190240300340380

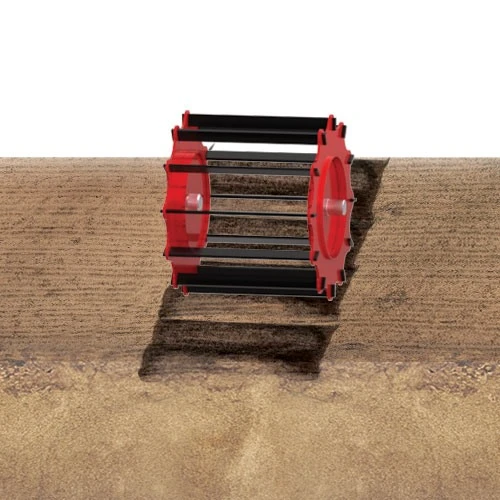

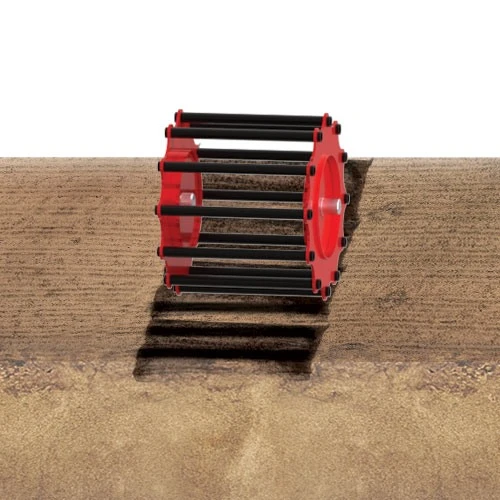

Cage Roller Ø 560kg210260315360420

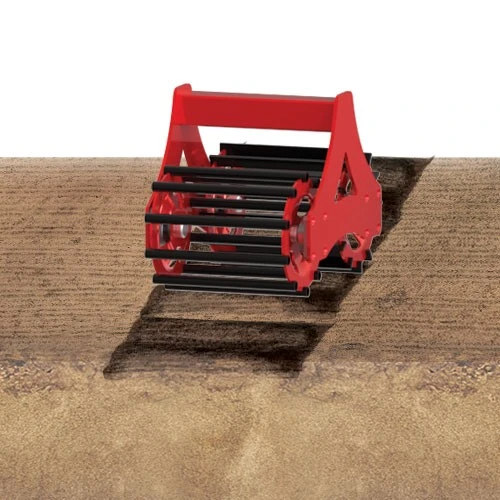

Tandem Roller Ø 400kg290360440500570

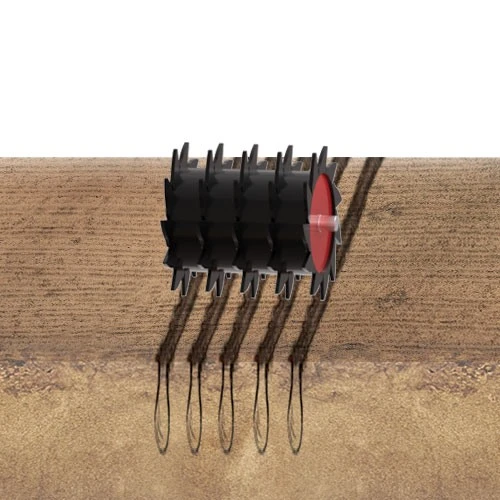

Tooth Packer Roller Ø 560kg280360430510590
Knife Ring Roller Ø 560kg380450530610700

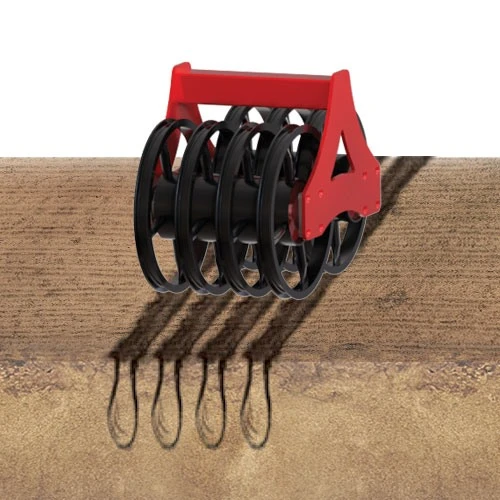

Double “U” Profile Roller Ø 560kg5306608009301050
Disc Roller Ø 530kg300350410470540
Rollflex Packer Roller Ø 560kg280360420480560
Closing Harrow kg50607085100
Broşür
Compact Disc Harrow Gaius
PDF İncele
Video
Power Requirement From

Power Requirement From

Working Speed

Working Speed

510 Mm Disc Working Depth

510 Mm Disc Working Depth

560 Mm Disc Working Depth

560 Mm Disc Working Depth

Working Width

Working Width

510 Mm Disc

510 Mm Disc

An intensive mixing

510 mm diameter notched and plain disc characterize usage in

more aggressive operations. It cultivates soil surface even under

formidable conditions. The main purpose of these disc is stubble tillage, seedbed preparation and weed management.

• 5 - 14 cm working depth

• Disc thickness 4 mm / disc diameter 510 mm /plain or notched

• Universal usage for an intensive operation

• More aggressive operation

• Efficient use of organic fertilizers

510 Mm Disc

510 Mm Disc

+1 Disc = 3 Meters

+1 Disc = 3 Meters

We get 3 meters of working width in our Gaius model through easily adjustable

+1 disc. Fast transition from working position to transport position.

Side Protection Cover Plate

Side Protection Cover Plate

Standard side plates,

Adjustable side plates for a smooth surface quality

It is presented as the standard equipment at both sides.

Provides a plain surface during these transitions.

+1 Disc = 3 Meters

+1 Disc = 3 Meters

No More Lubrication Thanks To Maintenance - Free Disc Bearings !

No More Lubrication Thanks To Maintenance - Free Disc Bearings !

Disc bearings which do not need any lubrication significantly reduce general maintenance time. They provide reliable solution for the most formidable soil structure.

Used in all our models due to its strong design.

• Life-long zero maintenance

• Reliability thanks to its strong structure

• Different from competitors

Bearing

Bearing

1- Large Diameter Outer Shell

2- Double Row Tapered Roller Bearing

3- High Strength Bearing Axle

4- Rear Mount Cover

5- Double Cassette Seal

6- Bearing Cover

7- O-ring

Depth Adjustment

Depth Adjustment

Hydraulic depth and parallelism adjustment is used as the standard equipment in all our models provides great comfort. You can set parallelism and depth as you want without getting off your tractor.

Harrow

Harrow

Thanks to the closing harrow positioned behind the roller for final preparation before planting corn and sugar beet, excellent conditions for disintegration, leaving a smooth cultivated surface and germination of seeds.

An additional advantage when using the harrow is the optimised straw distribution.

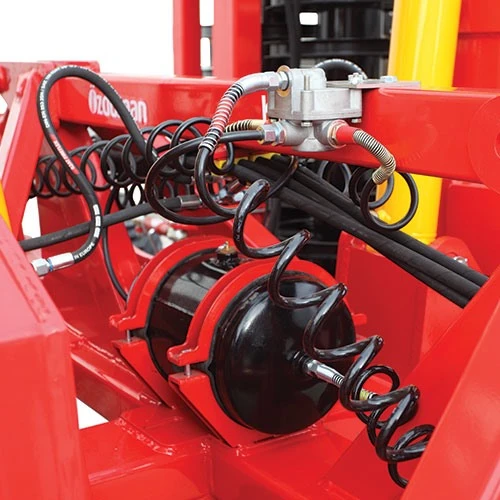

Pneumatic Or Hydraulic Brake Kit

Pneumatic Or Hydraulic Brake Kit

40% of the machine weight is transferred to tractor when it is switched into transport position. When, it is switched into transport position and park mode, pneumatic or hydraulic brake kit is recommended for safe drive and stopping the machine whenever you want. Our machine can be equipped with a pneumatic or hydraulic brake.

Effective Operating Angle

Effective Operating Angle

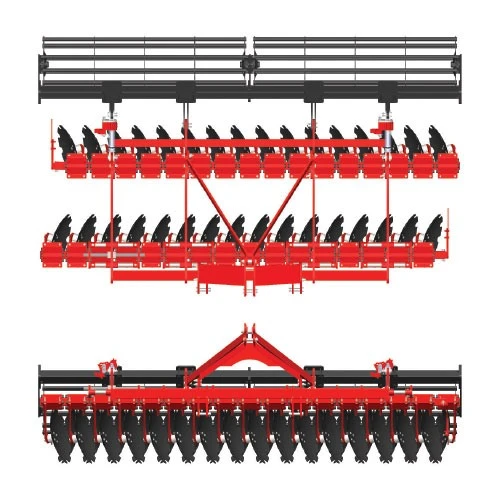

Fixed

Fixed

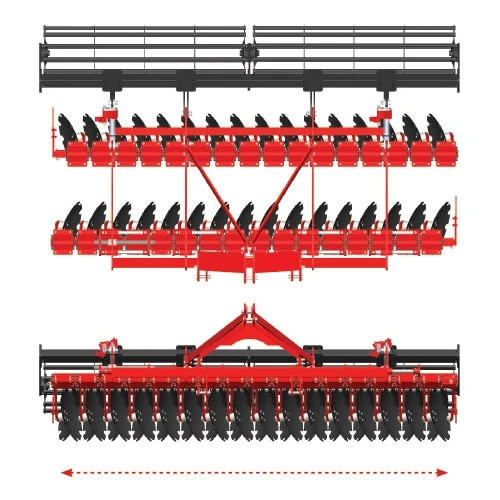

Sliding

Sliding

Maximize precision to the highest level
